O-ring FAQs and quickly identify and resolve abnormalities

How O-rings work

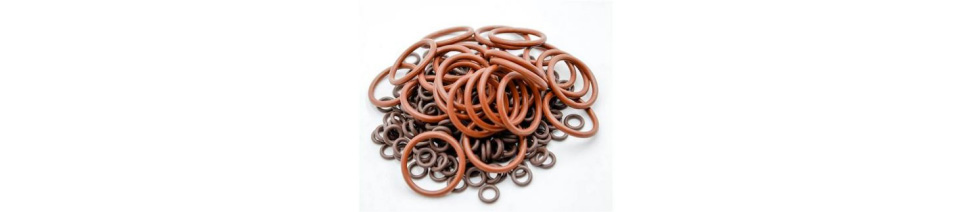

An O-ring is an annular sealing element, usually made of an elastic material such as rubber, polyurethane, or fluororubber. Its working principle is based on its elastic deformation capacity, forming a seal between two contact surfaces. The circular section of the O-ring can evenly fill the sealing groove when under pressure, preventing liquid or gas from passing through the sealing surface, thereby achieving a sealing effect.

Application fields of O-rings

O-rings are widely used in various mechanical equipment and industrial systems, such as:

Hydraulic system: used for sealing of hydraulic cylinders, hydraulic pumps and other components.
Pneumatic system: used for sealing of cylinder, pneumatic valve and other components.
Automotive industry: used for sealing of engines, gearboxes and other components.
Aerospace: liquid and gas system seals for use in aircraft.
Petrochemicals: Seals for conveying pipelines, reactors and other equipment.

Detailed analysis of common anomalies in O-rings

As a widely used sealing element, the performance of O-ring directly affects the normal operation of the equipment. Although the design of the O-ring is simple, in practical applications, various abnormal phenomena may occur, which can cause the seal to fail, thus affecting the working efficiency and reliability of the equipment. The following is a detailed analysis of common anomalies of the O-ring, including the specific causes, effects, diagnostic methods, solutions, and preventive measures.

O-ring hardening

1.1 Description of phenomena

O-ring hardening usually manifests as a significant weakening of the elasticity of the material, and the surface becomes hard and fragile. The hardened O-ring does not deform as it would in a normal state when stressed, resulting in a noticeable decrease in sealing effect. Cracks or other physical damage may occur on the surface of the hardened O-ring, affecting its sealing performance.

1.2 Cause analysis

Excessive temperature: In a long-term high temperature environment, the rubber material of the O-ring will undergo a chemical reaction, resulting in an increase in the hardness of the material. High temperatures can break or crosslink polymer chains in rubber materials, causing them to become less elastic. For example, an environment in which the operating temperature exceeds 200°C may cause hardening of the O-ring material.
Aging: During long-term use, O-rings are affected by oxygen, ozone and ultraviolet rays. These environmental factors can cause oxidation and aging of the rubber material, making it harder and more fragile. Aging usually manifests itself as an increase in the hardness of the material, a decrease in elasticity, and cracking of the surface.
Chemical contact: certain chemicals (such as solvents, oils, acid and alkali substances) will react with the O-ring material, causing the material to harden. Chemicals may dissolve certain components in the rubber, leading to changes in material properties. For example, certain oils and solvents react with fluororubber (FKM), causing it to harden.

1.3 Impact

Hardened O-rings lose their elasticity and sealing ability, causing the device seal to fail. This can lead to the leakage of liquids or gases, which can affect the proper operation of the equipment. In addition, hardened O-rings are more likely to break or be damaged, which can cause downtime or serious malfunctions of the equipment.

1.4 Diagnostic methods

Appearance inspection: Check the surface of the O-ring for cracks, discoloration or hardening. Hardened O-rings usually become hard and fragile, and it is easy to feel their texture different from normal O-rings between the fingers.
Hardness test: Use a hardness tester to test the hardness of the O-ring. If the hardness value is outside the normal range, it may indicate that the O-ring has hardened.
Performance test: Observe the sealing effect of the O-ring in practical application. If poor sealing or leakage is found, it may be due to hardening of the O-ring.

1.5 Solutions

Choose the appropriate material: choose the high temperature resistant and aging resistant O-ring material according to the application environment. For example, fluororubber (FKM) or silicone rubber (SI) is used to deal with the effects of high temperatures or chemicals.
Control the working environment temperature: ensure that the O-ring works within the appropriate temperature range. Avoid exposing the O-ring to temperatures in excess of its applicable temperature.
Avoid chemical exposure: If the O-ring must be exposed to chemicals, select materials that are resistant to chemicals, and minimize contact with chemicals.

1.6 Preventive measures

Selection of suitable materials and specifications: According to the specific working environment and requirements, the appropriate O-ring materials and specifications are selected to reduce the problems caused by hardening.
Periodic inspection and maintenance: Regularly check the status of the O-ring, especially in high temperature or chemical contact applications, and replace aging or hardened O-rings in a timely manner.
Optimized design: During the design stage, the design is optimized to reduce the risk of exposure of the O-ring to extreme conditions, taking into account the working environment of the O-ring.
Aging of O-rings

2.1 Description of phenomena

Aging O-rings are usually manifested by reduced elasticity of the material, cracks or discoloration of the surface. Aging can cause a significant decrease in the sealing performance of the O-ring, increase the maintenance cost of the equipment, and may cause equipment failure.

2.2 Cause analysis

Oxidation: The chemical composition in a rubber material reacts with oxygen, causing a change in the chemical structure of the material. Oxidation destroys the molecular chains of the rubber, causing the material to harden and lose elasticity.
UV exposure: UV rays exposed to sunlight for a long time can cause damage to the O-ring material. UV light can cause chemical reactions in rubber, making the material fragile and brittle.
Temperature change: drastic changes in temperature (such as alternating hot and cold) will accelerate the aging process of rubber. Temperature changes can cause the rubber material to expand and contract, which accelerates its aging.

2.3 Impact

Aging O-rings can cause a decrease in sealing performance, which may trigger liquid or gas leakage, affecting the normal operation of the equipment. In addition, aging O-rings are more prone to cracks or breakage, increasing maintenance costs and downtime.

2.4 Diagnostic methods

Appearance inspection: Check the surface of the O-ring for cracks, discoloration or other signs of aging. Aging O-rings often present significant surface damage.
Performance test: test the elasticity and sealing effect of the O-ring. Aging O-rings will show reduced elasticity and poor sealing.
Aging test: Accelerated aging test under laboratory conditions, simulating the aging process of O-rings in actual use, and detecting changes in their performance.

2.5 Solutions

Selection of anti-aging materials: use of materials with anti-aging properties, such as rubber materials with added antioxidants. Silicone rubber and fluororubber generally have better anti-aging properties.
Avoid UV exposure: Avoid direct exposure to sunlight when storing and using O-rings. Shading materials can be used or O-rings can be placed in a cool environment.
Control the temperature change: keep the O-ring working in a stable temperature range, avoid violent temperature fluctuations. If there is a temperature change in the equipment, consider using O-ring material with higher temperature resistance.

2.6 Precautions

Optimized design: Consider the use environment of the O-ring during the design stage, and select suitable materials and design solutions to reduce the risk of aging.
Regular inspection and replacement: Regularly check the status of the O-ring and replace it promptly when signs of aging are found to ensure the proper operation of the equipment.
Storage Management: When not in use, store the O-ring in a dry, shaded environment, away from direct sunlight and high temperatures.
Compression deformation of O-ring

3.1 Description of phenomena

The O-ring may experience compression deformation after being compressed, that is, the O-ring is compressed beyond its design limit, resulting in reduced sealing effect or failure.

3.2 Cause analysis

Excessive compression: O-rings are compressed beyond their design limits when installed, causing deformation of the material. Excessive compression will cause the elasticity of the O-ring to deteriorate, affecting the sealing effect.
Improper installation: uneven installation pressure or incorrect installation method can cause the O-ring to deform under pressure. Human factors during installation may also cause uneven compression of the O-ring.

3.3 Impact

Compression-deformed O-rings lose their elasticity, causing a decrease in sealing performance. This can trigger a leak of liquid or gas, affecting the proper operation of the equipment. In addition, excessive compression may also cause permanent deformation or damage to the O-ring, increasing maintenance costs.

3.4 Diagnostic methods

Appearance inspection: Check the O-ring for obvious deformation, indentation or damage to the material. O-rings that are compressed and deformed may have irregular indentations or deformations.
Installation check: Check the installation of the O-ring to ensure that it is in the correct position and the compression amount meets the design requirements. Check the installation process for problems with uneven pressure.
Performance test: test the sealing effect of the O-ring, evaluate its performance under actual working conditions. If the sealing performance is degraded, it may be due to compression deformation.

3.5 Solutions

Control the compression amount: control the compression amount of the O-ring according to the design requirements, ensure it is within the recommended range. Avoid over-compression to maintain the elasticity and sealing performance of the O-ring.
Proper installation: Follow the manufacturer's installation guide to ensure even pressure distribution. Installation with special tools to prevent deformation due to human factors.
Adjusting the design: If the compression amount exceeds the design range, consider adjusting the design of the groove body or using O-rings of different specifications to adapt to the actual application needs.

3.6 Preventive measures

Optimized design: In the design stage, considering the compression amount and working pressure of the O-ring, the design is optimized to reduce the risk of compression deformation.
Training and specification of operations: training of installers to ensure that they are aware of correct installation methods and compression volume control requirements.
Regular inspection: Check the installation status of the O-ring regularly, adjust or replace it in time when problems are found to ensure sealing performance.
O-ring extrusion

4.1 Description of phenomena

The O-ring may be extruded during operation, that is, the O-ring is extruded out of its installation position, causing seal failure.

4.2 Cause analysis

The working pressure is too high: the pressure of the working environment exceeds the tolerance range of the O-ring, causing the O-ring to be squeezed out of its slot position. The sealing effect of the O-ring may be affected in a high-pressure environment.
Improper design of the groove body: The design of the mounting groove body is unreasonable, causing the O-ring to be extruded under pressure. The depth or width of the groove body is insufficient to effectively support the O-ring.

4.3 Impact

The extruded O-ring can cause the seal to fail, and liquid or gas may leak, thus affecting the normal operation of the equipment. Extrusion may also cause damage or permanent deformation of the O-ring, increasing maintenance costs and downtime.

4.4 Diagnostic methods

Appearance inspection: Check whether the O-ring shows crowding. The extruded O-ring may show significant deformation or damage outside the trough body.
Pressure check: measure the pressure of the working environment to ensure that it is within the tolerance of the O-ring. High pressure may be the main reason for the crowding phenomenon.
Tank inspection: Check the design of the mounting tank to ensure that its size and shape meet the requirements of the O-ring. Improper design of the groove body may lead to O-ring extrusion.

4.5 Solutions

Improved slot design: The mounting slot is redesigned to ensure that it can effectively support the O-ring and prevent it from being squeezed out under pressure. The trough body shall have sufficient support and suitable dimensions.
Choose the right material: Choose the right O-ring material and specification according to the working pressure to withstand higher pressure. Consider the use of materials with high pressure bearing capacity such as fluororubber (FKM) or polyurethane (PU).
Control the working pressure: ensure that the pressure of the working environment is within the tolerance of the O-ring. If the pressure is too high, consider adjusting the working conditions or using an O-ring suitable for a high pressure environment.

4.6 Precautions

Optimized design: The working pressure of the O-ring and the design of the groove body are considered during the design stage to ensure that the O-ring can be effectively supported to prevent crowding.
Periodic inspection: Regularly check the installation status and working environment of the O-ring, adjust or replace it in time when problems are found to ensure sealing performance.
Select suitable material: Select suitable O-ring material according to practical application requirements to withstand high pressure or special working environment requirements.
O-ring wear

5.1 Description of phenomena

O-rings may wear out during operation, usually showing rough surfaces or obvious wear marks. Wear will cause the sealing performance of the O-ring to decrease, affecting the normal operation of the equipment.

5.2 Cause analysis

Friction: friction between the O-ring and the contact surface can cause surface wear. Friction can be due to improper design or mismatch of materials.
Media effects: Particulate matter in fluid media can cause wear on O-rings, especially in media with high flow rates or containing solid particles. For example, particles suspended in the liquid may cause friction wear to the O-ring.

5.3 Impact

The worn O-ring can cause a decrease in sealing performance, which may trigger a liquid or gas leak, affecting the normal operation of the equipment. In addition, wear may cause material peeling or damage to the O-ring, increasing maintenance costs and downtime.

5.4 Diagnostic methods

Appearance inspection: Check the surface of the O-ring for obvious wear marks, such as rough surface, material peeling, etc. Worn O-rings usually show significant wear.
Performance test: test the sealing effect of the O-ring, evaluate its performance under actual working conditions. If the sealing performance is degraded, it may be due to wear.
Medium analysis: Analyze whether the fluid medium contains particulate matter or other wear factors to know if there are external factors that cause the wear of the O-ring.

5.5 Solutions

Reduce friction: Optimized design, reduce friction between O-ring and contact surface. Lubricant or lubricating oil can be used to reduce friction and extend the life of the O-ring.
Selection of wear-resistant material: Choose wear-resistant O-ring material such as polyurethane (PU) or other wear-resistant material according to the medium and working conditions. Wear-resistant materials can effectively reduce wear phenomena.
Improving the quality of the medium: If particulate matter or other wear factors are present in the fluid medium, consider improving the quality of the medium or using a filter device to reduce wear on the O-ring.

5.6 Precautions

Optimize the design: consider the working environment of the O-ring during the design stage, select suitable materials and design solutions to reduce the risk of wear.
Periodic inspection and maintenance: Regularly check the status of the O-ring, especially in media with high flow rate or containing particulate matter, and replace worn O-rings in a timely manner.
Use of lubricant: where applicable, lubricant or lubricating oil is used to reduce friction between the O-ring and the contact surface, extending the service life of the O-ring.
O-ring expansion

6.1 Description of phenomena

The O-ring may expand during operation, manifesting as an increase in volume, affecting its sealing effect. Expanded O-rings can cause poor sealing and even trigger leakage.

6.2 Cause analysis

Contact media: Some fluid media (such as oils, solvents) can cause the O-ring material to expand. The chemical composition in the medium will react with the O-ring material, causing the volume of the material to increase.
Temperature change: Temperature change may also cause expansion of the O-ring, especially under high temperature conditions. Increased temperature can cause expansion of the rubber material, affecting its sealing properties.

6.3 Impact

Expanded O-rings can cause a decrease in sealing performance, which may trigger liquid or gas leakage, affecting the normal operation of the equipment. The expansion may also cause the O-ring to fail to remain stable in the mounting groove body, increasing the maintenance cost and downtime of the equipment.

6.4 Diagnostic methods

Appearance inspection: Check whether the O-ring is expanding. Expanded O-rings may show significant volume increase or deformation within the body of the trough.
Medium analysis: Analyze the chemical composition in the fluid medium to know if there are factors that cause the O-ring to expand. Check if the medium is incompatible with the O-ring material.
Temperature monitoring: monitor the temperature of the working environment to see if there is any temperature change causing the O-ring to expand.

6.5 Solutions

Selection of expansion resistant materials: use of expansion resistant O-ring materials, such as those with higher oil resistance, in order to cope with the influence of fluid media.
Controlling media contact: If the O-ring must be in contact with chemicals or other media, select materials compatible with these media and minimize direct contact.
Control the temperature change: keep the O-ring working in a stable temperature range, avoid drastic temperature change. If the temperature is too high, consider using materials with high temperature resistance.

6.6 Precautions

Optimized design: During the design stage, considering the working environment and medium of the O-ring, the appropriate material and design scheme are selected to reduce the risk of expansion.
Periodic inspection: Regularly check the status of the O-ring, especially in applications with high temperature or exposure to chemicals, and replace the expanded O-ring in a timely manner.
Selection of suitable material: Choose suitable O-ring material according to practical application needs to cope with the requirements of expansion or other special working environment.
Surface defects of O-rings

7.1 Description of phenomena

Surface defects of the O-ring include cracks, bubbles, peeling, etc. These defects will affect the sealing performance of the O-ring and may cause equipment failure.

7.2 Cause analysis

Material quality problems: The raw materials used in the manufacturing process are not of standard quality and may cause defects on the surface of the O-ring. Impurities or inhomogeneities in the raw material can affect the performance of the O-ring.
Production process problems: Improper process operation during production, such as excessive temperature or uneven mixing, may cause defects on the surface of the O-ring.
Environmental factors: During storage and transportation, the O-ring may be affected by environmental factors, such as humidity, temperature changes, etc., causing surface defects.

7.3 Impact

O-rings with surface defects can cause a decrease in sealing performance and may trigger liquid or gas leakage, affecting the normal operation of the equipment. In addition, surface defects can also cause structural damage to the O-ring, increasing maintenance costs and downtime.

7.4 Diagnostic methods

Appearance inspection: Check the surface of the O-ring for obvious defects, such as cracks, bubbles or peeling phenomenon. Surface defects often show up as obvious physical damage.
Performance test: test the sealing effect of the O-ring, evaluate its performance under actual working conditions. If the sealing performance is degraded, it may be due to a surface defect.
Material analysis: Analyze the material of the O-ring and check it for quality problems. The uniformity and purity of materials are detected using tools such as microscopes.

7.5 Solutions

Selection of high-quality materials: ensure that O-rings are produced using high-quality materials that meet the standards and avoid surface defects caused by material quality problems.
Improving the production process: Optimize the production process to ensure that the temperature, mixing and other conditions in the production process meet the requirements and reduce defects caused by process problems.
Control of environmental conditions: control of environmental conditions during storage and transportation to avoid the influence of humidity and temperature changes on the surface of the O-ring.

7.6 Precautions

Strict inspection of materials: Strict inspection of raw materials to ensure their quality meets production requirements and reduce surface defects caused by material problems.
Optimize the production process: Optimize the production process and process to ensure that every link in the O-ring production process meets the quality standards and reduce the risk of surface defects.
Regular inspection and maintenance: Regularly check the production and storage status of the O-ring, deal with problems in a timely manner when they are found, to ensure the quality and performance of the O-ring.

As a sealing element, O-rings play an important role in various mechanical and industrial systems. Understanding and coping with common anomalies of O-rings, including hardening, aging, compression deformation, extrusion, abrasion, expansion and surface defects, can effectively improve the reliability and operational efficiency of the equipment. By selecting suitable materials, optimizing the design, controlling the working environment and regular inspection and maintenance, the abnormal problem of O-rings can be prevented and solved, ensuring the long-term stable operation of the equipment.
